FIELDPIECE

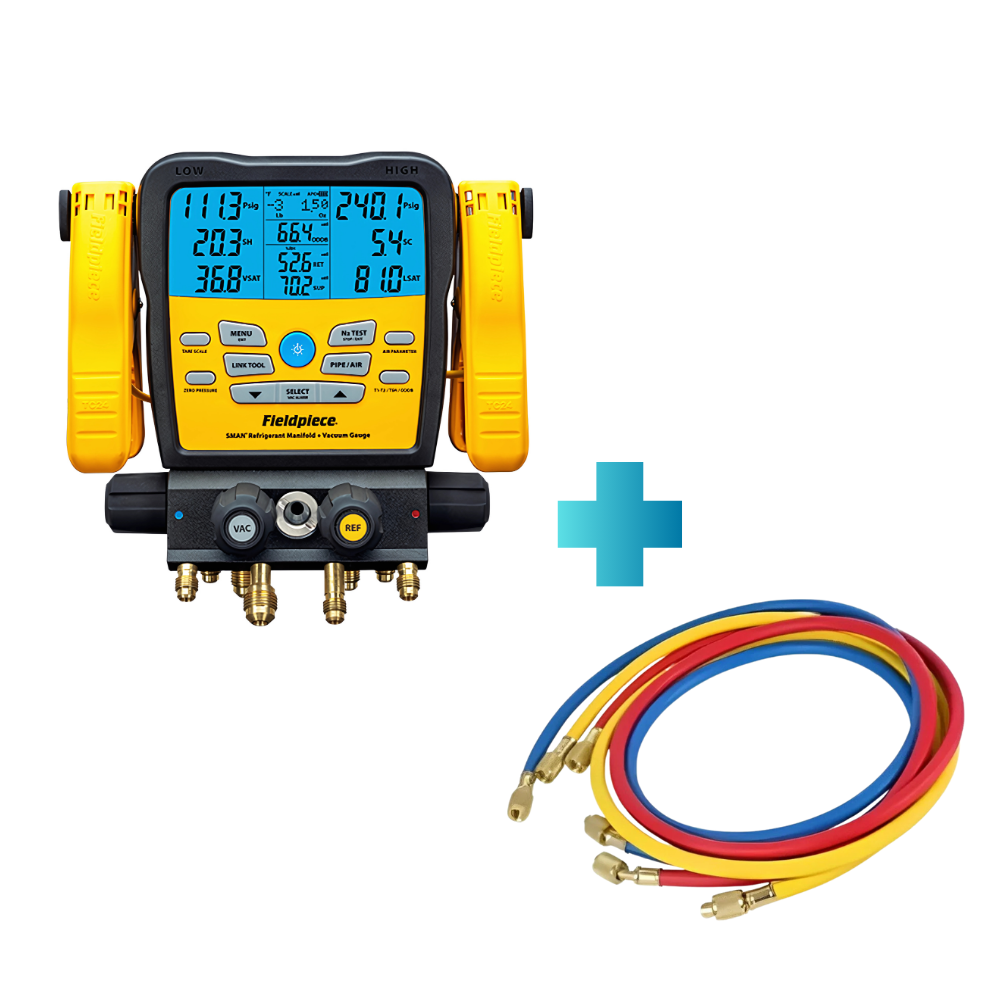

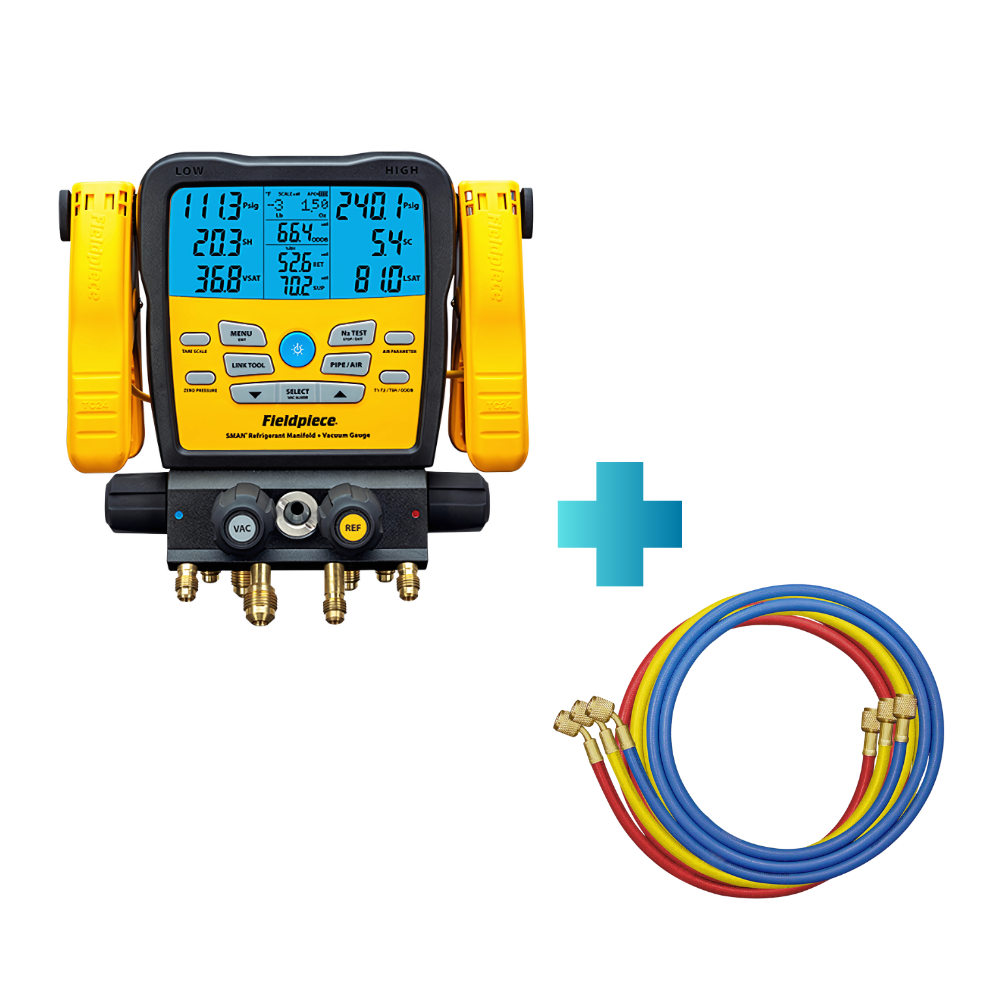

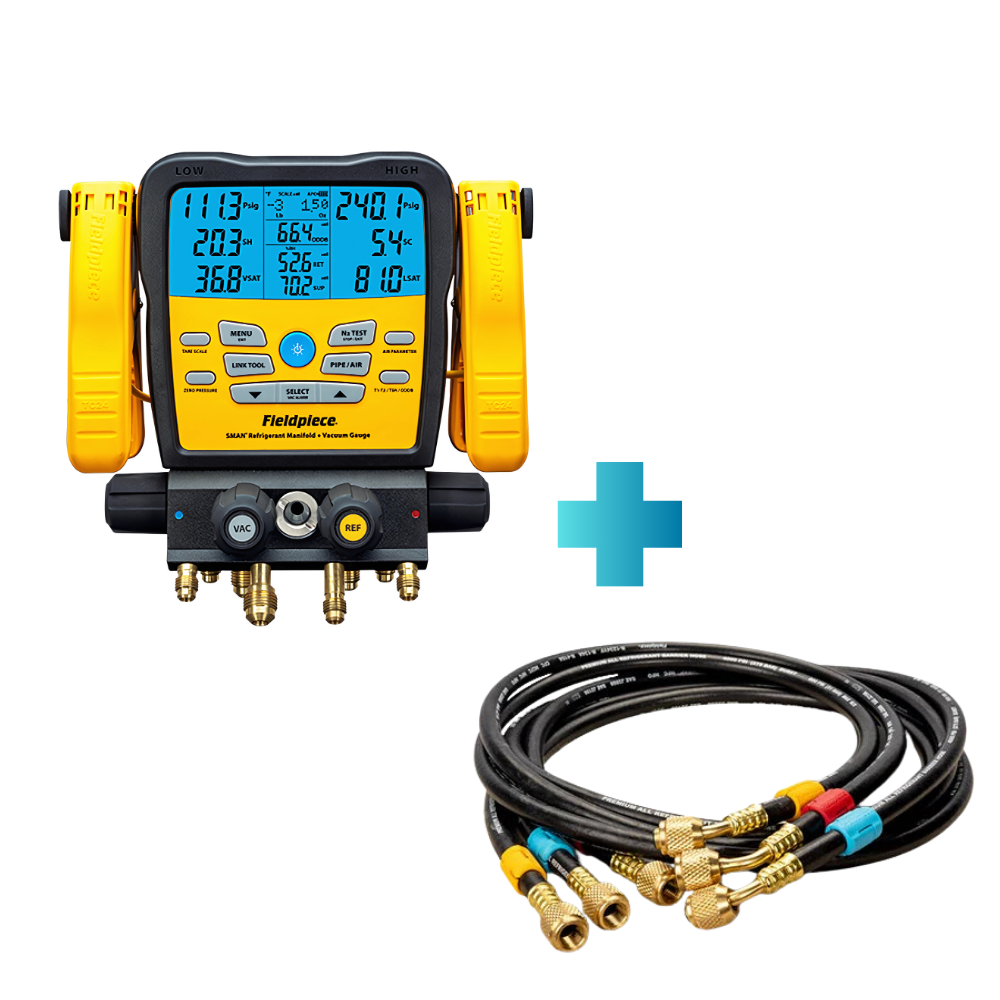

FIELDPIECE SM480VINT 4-Valve Wireless Refrigerant Manifold
SM480VINT
Usually ready in 24 hours
FIELDPIECE SM480VINT 4-Valve Wireless Refrigerant Manifold
SM480VINT
This FIELDPIECE SM480VINT 4-Valve Wireless Refrigerant Manifold is featuring an extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass, wireless capabilities, data logging, and tightness test, all so you can do your job easier, faster and better.
Details:
-
Stores up to 9 jobs internally
-
Easy download via USB port
-
Displays % free storage space before logging begins
-
Logs up to 7 days (168 continuous hours)
-
Receives Wireless Measurements on SMAN and/or in Job Link App
-
Monitor and record refrigerant weight
-
Direct 100 m wireless range (no transmitter needed)
Tightness test built-in feature:
-
Check for leaks after repairs or installations
-
View pressure differential over time
-
Timer tracks duration of test
-
Temperature compensated with SL temp to avoid false positives
Customisable menu:
-
Adjust auto power-off duration
-
Adjust back light duration
-
Set high and low vacuum alarms
-
Select each unit of measurement individually
Specifications:
- Display: LCD (5 inches diagonal)
- Backlight: Blue (adjustable duration)
- Low battery indication: is displayed when the battery voltage drops below the operating level.
- Auto power off: 30 minutes of inactivity (adjustable)
- Maximum manifold pressure: 800 Psig (5500 kPa)
- Battery type: 6 x AA alkaline
- Battery life: 350 hours typical (without vacuum, backlight, and wireless)
- Radio frequency: 2.4 GHz
- Wireless range: 1000 feet (305 meters) line of sight – distance decreases through obstructions
- Data port: Micro USB (for extracting data logs or updating firmware)
- Operating environment: 32°F to 122°F (0°C to 50°C) at <75% RH
- Storage environment: -4°F to 140°F (-20°C to 60°C) at <80% RH (with battery removed)
- Temperature coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C), per 1.8°F (32°F to 64°F, 82°F to 122°F)
- Weight: 4.03 lbs (1.83 kg)
- Water resistant: Designed to IP54
WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
PRE-ORDERS:
All products listed with the "PRE-ORDER ONLY' badge are currently awaiting more stock. Please be sure to speak to a staff member regarding the wait time involved with a particular PRE-ORDER product before ordering.
