HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set & Halogen Leak Detector)

HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set & Halogen Leak Detector)

KIT5

This HVACDIRECT KIT5, Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set, Tool Set & Leak Detector) is a high quality tool kit that is ideal for general refrigeration and split system service. Included in this kit are some of HVAC Direct's best selling products.

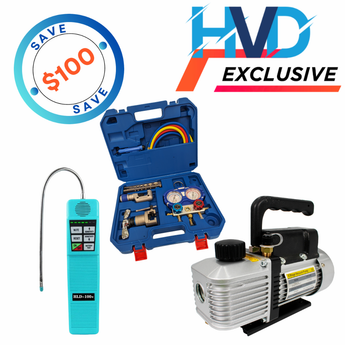

Kit contains:

#1. Refrigeration Vacuum Pump (VP215N)

Ideal for general refrigeration service, our top selling 45L/min Vacuum Pump is a quality, 2-stage oil rotary vane pump with 15 micron ultimate vacuum.

Applications:

• Bottle shops and convenient stores

• Restaurants, cafes and catering facilities

• General refrigeration

• Household or residential including split systems

• Commercial

Key Benefits:

• Manufactured to high quality JAVAC standards

• Great value for money

• Anti-oil demister to prevent oil spillage

• Fitted with 1/4" SAE connector

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507

#2.

HVACDIRECT Manifold Set & Refrigeration Tool Kit

ZRB5BA

This HVACDIRECT ZRB5BA, HVACDIRECT Manifold Set & Refrigeration Tool Kit is the perfect entry level tool kit for refrigeration. See all features of products within the kit below;

1. Manifold gauge:

• Refrigerants: R410a, R22, R134a, R404a

• Anti-collision cover for gauge protection

• Operation: 2 valve with sight glass

• Port size: 1/4" SAE

2. Hoses:

• Length (mm): 1500

• Connections: 1/4" SAE x 5/16"

• Working pressure: 800 psi

• Burst pressure: 4000 psi

• Colours: Blue, red & yellow

3. Tube flaring tool

• Heavy duty eccentric cone flaring

• Steel design

• Bar lock

• Hardened steel bearings

• Flaring bar sizes (mm): 6, 8, 10, 12, 16 & 19

• Flaring bar sizes (inches): 1/4", 5/16", 3/8", 1/2",  5/8" & 3/4"

4. Tube cutter:

• 6x roller bearing for easy turning

• Large wheel for easy cutting

• Tube size: 4-32mm

5. Deburring tool:

• Plastic body with hardened steel swivel tips

• Internal tip storage, including 1 spare tip

#3. HVACDIRECT Refrigerant Leak Detector (Halogen)

HLD100

This HVACDIRECT HLD100, Refrigerant Leak Detector is a device that features high performance, powerful function, extreme sensitivity and is very easy to operate.

Features:

• Detects all kinds of halogenated refrigerants

• Single colour LED display with 6-level leak alarm

• Tricolour display of battery voltage

• Reset time sensitivity adjustment

• Real time sensitivity adjustment

• Adopts quality sensors that can detect slightly leaked halogen gases

• 355 mm flexible stainless steel probe

Detects:

• Halogenated refrigerants (with Chlorine and Fluorine included) including, but not limited to:

• CFCs R12, R11, R500, R503, etc

• HCFCs R22, R123, R124, R502, etc

• HFCs R34a, R404a, R125, etc

• Ethylene oxide gas leaks in hospital sterilising equipment (it will detect the halogenated carrier gas)

• SF-6 in high voltage circuit breakers

• Most gases that contain Chlorine, Fluorine, and Bromine (halogen gases)

• Cleaning agents used in dry cleaning applications such as chloroethylene

• Halogen gases in fire-extinguishing system.

Specifications:

• Max sensitivity to halogenated refrigerants: 3 g/y

• Working temperature: 0~–50 °C

• Working mode: Continuous and no limit

• Reaction time: Instant

• Resetting time: 2 seconds

• Warm-up time: about 6 seconds

• Probe length: 355 mm
