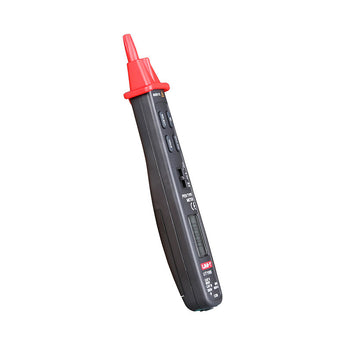

UNI-T Pen Type Digital Multimeter
UT118B
Usually ready in 24 hours
UNI-T Pen Type Digital Multimeter
UT118B
Features of UT118B Pen Type Digital Multimeter
Certifications: CE, UKCA
- Display count: 3000
- Auto SCAN and range identify mode
- Data hold, auto power off, low battery indication
- MAX/MIN modes
- LCD backlight
- Non-contact voltage detection
Specifications of UT118B Pen Type Digital Multimeter
|
Specifications |
Range |
Range |
UT118B |
|
DC voltage (V) |
300V |
300V |
±(1%+3) |
|
AC Voltage (V) |
300V |
300V |
±(1%+4) |
|
Resistance (Ω) |
3MΩ |
30MΩ |
±(1%+3) |
|
Capacitance (F) |
300μF |
3mF |
±(3%+5) |
|
Features |
|||
|
Display count |
3000 |
||
|
Auto range |
√ |
||
|
EF function |
√ |
||
|
Diode |
√ |
||
|
Auto power off |
Around 10 minutes |
√ |
|
|
Continuity buzzer |
√ |
||
|
Low battery indication |
√ |
||
|
Data hold |
√ |
||
|
MAX/MIN |
√ |
||
|
LCD backlight |
√ |
||
|
Input impedance for DCV |
≥10MΩ |
√ |
|
|
General Characteristics |
|||
|
Power |
3V battery (CR2032) |
||
|
Display |
28mm x 14mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
90g |
||
|
Product size |
20mm x 27mm x 182mm |
||
|
Standard accessories |
Battery, test lead |
||
|
Standard individual packing |
Blister, English manual |
||
|
Standard quantity per carton |
40pcs |
||
|
Standard carton measurement |
535mm x 205mm x 287mm |
||
|
Standard carton gross weight |
7.1kg |
||
WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
