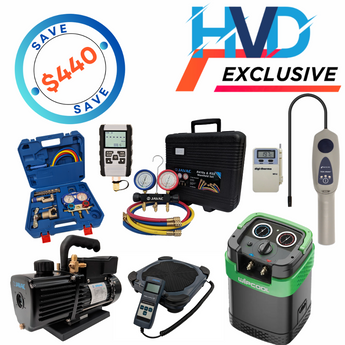

HVACDIRECT Complete Refrigeration Kit (8 Piece Kit)

HVACDIRECT Complete Refrigeration Kit (8 Piece Kit)

KIT15



This HVACDIRECT KIT15, Complete Refrigeration Kit (8 Piece Kit) is a high quality tool kit that is ideal for those looking to do some serious work in the HVAC industry. Included in this kit are some of HVAC Direct's best selling products.



Kit contains:

#1. JAVAC CAL Series, 45 L/min, 2-stage Vacuum Pump - R32 Compliant

VCL452



This JAVAC CAL Series VCL452 is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to JAVAC's high quality standards
• 45 L/min flow rate
• 15 micron ultimate vacuum
• Ballast valve
• Anti-oil demister to prevent oil spillage
• Fitted with a tri-connector: 1/4", 3/8" & 5/16" SAE
• 350ml oil capacity
• Dimensions (mm): 330x135x255
• Weight (kg): 9.6kg



#2. WIPCOOL MRM55 Refrigerant Recovery Machine

WMRM55

This WIPCOOL WMRM55 is a lightweight, efficient and reliable refrigerant recovery machine with a compact, sturdy casing. It provides an ideal solution for making refrigerant recovery fast and simple.

Different from most brands of refrigerant recovery machines, it adopts an integrated vertical structure design, with an overhead pressure gauge and an operating key design. In addition, it has a service port at the back of the machine, so it will be very convenient to replace the piston ring and air valve core.

Features:

Model	WMRM55
Refrigerants	R12, R134A, R401C, R406A, R500, R1234yf
	R22, R401A, R401B, R402B, R407C, R407D, R408A,
	R409A, R411A, R411B, R412A, R502, R509
	R402A, R404A, R407A, R407B, R410A, R507, R32
Voltage	110V~/60Hz			230V~/50-60Hz
Motor Power	3/4HP
Motor Speed	2800RPM
Current(Max.)	8A			4A
Compressor	Oil-less, Air-cooled, Piston-style
Automatic Safety Shut	38.5bar/3850kpa(558psi)
Recovery Rate	Ⅲ		IV		V
	0.22kg/min		0.25kg/min		0.25kg/min
	1.8kg/min		2.0kg/min		2.2kg/min
	5.0kg/min		6.0kg/min		6.5kg/min
Operating Temperature	0℃-40℃
Dimensions	259mm(L)*235mm(W)*390mm(H)
Weight	9.0kg

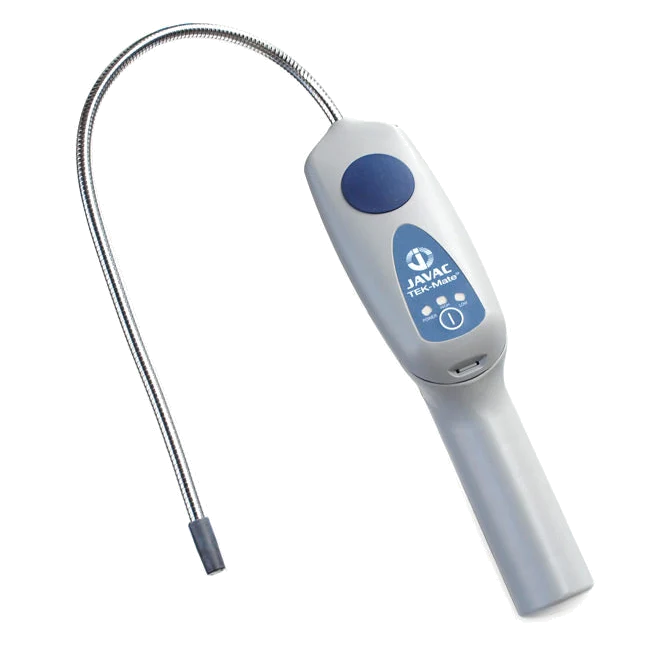

#3. INFICON Tek-Mate Leak Detector

705202G6



This INFICON 705202G6, Tek-Mate Leak Detector offers hand-held convenience. It boasts proven heated diode sensor technology and incorporates an electrochemical sensor consisting of a ceramic substrate, doped with a reactive element, and maintained at high temperatures by a built-in heating element.



Applications:

• Residential

• Light commercial

• Industrial

• Automotive A/C

Benefits:

• Detects all CFC's, HCFC's and HFC's

• Runs on 2 D-cell batteries

• No adjustments required as it continuously monitors and compensates for changing background noise

Specifications:

• HDST: Heated Diode Sensor Technology

• Operating temperature: -20 - 50 °C

• Minimum sensitivity: 5 g/yr

• Sensor life: 100 hours

• Battery life: 16 hours



#4. HVACDIRECT Manifold Set & Refrigeration Tool Kit

ZRB5BA



This HVACDIRECT ZRB5BA, HVACDIRECT Manifold Set & Refrigeration Tool Kit is the perfect entry level tool kit for refrigeration. See all features of products within the kit below;



1. Manifold gauge:

• Refrigerants: R410a, R22, R134a, R404a

• Anti-collision cover for gauge protection

• Operation: 2 valve with sight glass

• Port size: 1/4" SAE

2. Hoses:

• Length (mm): 1500

• Connections: 1/4" SAE x 5/16"

• Working pressure: 800 psi

• Burst pressure: 4000 psi

• Colours: Blue, red & yellow

3. Tube flaring tool

• Heavy duty eccentric cone flaring

• Steel design

• Bar lock

• Hardened steel bearings

• Flaring bar sizes (mm): 6, 8, 10, 12, 16 & 19

• Flaring bar sizes (inches): 1/4", 5/16", 3/8", 1/2",  5/8" & 3/4"

4. Tube cutter:

• 6x roller bearing for easy turning

• Large wheel for easy cutting

• Tube size: 4-32mm

5. Deburring tool:

• Plastic body with hardened steel swivel tips

• Internal tip storage, including 1 spare tip



#5. JAVAC 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

JAVA66336



This JAVAC JAVA66336, 2-Valve Refrigeration Manifold Set has evolved from over 50 years of industry knowledge. With a 36" hose set and large 80mm gauges, this manifold set is designed for consistently accurate professional use.



Features:

• High quality aluminium body
• Piston values
• Soft ergonomic with colour-coded knobs
• Heavy-duty swivel hanging hook
• Heavy-duty black carry case
• 80mm gauges with soft cushion-protective cover, pulse-free pointer, zero-pointed callibration and colour-coded

Specifications:

• 800 psi max recommended working pressure
• Burst pressure 4,000 psi
• Red, blue & yellow hoses: 72", 5/16" SAE connections
• Included: 2-Valve Refrigeration Manifold, 3-piece hose set, hanging manifold hook & carry case



#6. HVACDIRECT Digital Thermometer

WT2THERMO



This HVACDIRECT WT2THERMO, HVACDIRECT Digital Thermometer is a high quality, portable thermometer. With it's 900mm flexible lead, readings can be taken using it from outside of vehicles.



Details:

• Temperature: -50 °C to +300 °C

• Resolution: 0.1 °C

• Accuracy: ±1 °C

• Power: DC 1.5 V AAA alkaline battery

• Probe length: 100 mm (+ handle)

• Screen size (mm): 32 x 14

• Plus: Min/max and alarm functions



#7. JAVAC Pro-Charge 3 Refrigerant Charging Scale

C12626



This JAVAC C12626, Pro-Charge 3 Scales offer a 100kg weighing limit. The scale is highly accurate, extremely durable and easy to operate.



Features:

• Power on self test (only lasts 2 seconds)
• Tare deduction in full range (100kg)
• LCD display
• Carry bag included
• Auto turn off feature, after 10 minutes idle



#8. HVD - Digital Vacuum Gauge

JAVG1



This HVD G1 Digital Vacuum Gauge obtains highly accurate vacuum measurements prior to filling refrigerants. It features a vacuum sensor to precisely measure vacuum in refrigeration and A/C systems, along with a wide range of other industrial fields. Leading IP65 water resistance for field technicians offers additional peace of mind.



Features:

• 0-75000 micron range
• Overload pressure - 14PSI/0.1MPA
• Measures: Torr(mmHg), mbar, Pa, Micron

• Auto-off - 10 minutes
• Sensor - Pirani
• High/low pressure alarms
• LCD display with backlight
• Protection grade IP65 (water & dust resistant)
• Carry bag

Specifications:

• Measuring range: 0-75000 micron

• Operating temperature: 0°C - 50 °C

• Ranges

• 0-10000 Pa
• 0-100.00 mBar
• 0-75.000 Torr
• 0-75000 Microns



• Fitting: 1/4″ M SAE

• Accuracy: +/– 10%

• Product size (mm): 127x74x37

• Power supply: x3 AA batteries

• Max overpressure: 14PSI,0.1Mpa

• Battery life: 200 h

• Units: Torr(mmHg), mbar, Pa, Micron
