HVACDIRECT Complete Refrigeration Kit (5 Piece Kit)

HVACDIRECT Complete Refrigeration Kit (5 Piece Kit)

PAKCOMP



This HVACDIRECT PAKCOMP, Complete Refrigeration Kit (5 Piece Kit) is a high quality tool kit that is ideal for those looking to do some serious work in the HVAC industry. Included in this kit are some of HVAC Direct's best selling products.

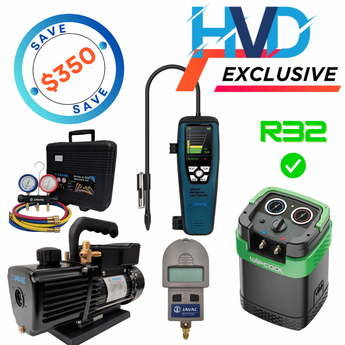

Kit contains:

#1. JAVAC CAL Series, 80 L/min, 2-stage Vacuum Pump - R32 Compliant

VCL822



This JAVAC CAL Series VCL822 is a quality 2-stage, oil rotary vane pump with a 81 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to JAVAC's high quality standards
• 80 L/min flow rate
• 15 micron ultimate vacuum
• Ballast valve
• Anti-oil demister to prevent oil spillage
• Fitted with a tri-connector: 1/4", 3/8" & 5/16" SAE
• 420ml oil capacity
• Dimensions (mm): 350x143x265
• Weight (kg): 9.6kg



#2. WIPCOOL MRM55 Refrigerant Recovery Machine

WMRM55

This WIPCOOL WMRM55 is a lightweight, efficient and reliable refrigerant recovery machine with a compact, sturdy casing. It provides an ideal solution for making refrigerant recovery fast and simple.

Different from most brands of refrigerant recovery machines, it adopts an integrated vertical structure design, with an overhead pressure gauge and an operating key design. In addition, it has a service port at the back of the machine, so it will be very convenient to replace the piston ring and air valve core.

Features:

Model	WMRM55
Refrigerants	R12, R134A, R401C, R406A, R500, R1234yf
	R22, R401A, R401B, R402B, R407C, R407D, R408A,
	R409A, R411A, R411B, R412A, R502, R509
	R402A, R404A, R407A, R407B, R410A, R507, R32
Voltage	110V~/60Hz			230V~/50-60Hz
Motor Power	3/4HP
Motor Speed	2800RPM
Current(Max.)	8A			4A
Compressor	Oil-less, Air-cooled, Piston-style
Automatic Safety Shut	38.5bar/3850kpa(558psi)
Recovery Rate	Ⅲ		IV		V
	0.22kg/min		0.25kg/min		0.25kg/min
	1.8kg/min		2.0kg/min		2.2kg/min
	5.0kg/min		6.0kg/min		6.5kg/min
Operating Temperature	0℃-40℃
Dimensions	259mm(L)*235mm(W)*390mm(H)
Weight	9.0kg





#3. JAVAC Pro-Sense Leak Detector - R32, R410a & R134a Compliant

JILD200



This JAVAC JILD200, Pro-Sense Leak Detector, when compared to the more common, traditional leak detector, excels in battery, detection accuracy, additional features, and even ergonomics. The Pro-Sense is the latest leak detector design to come from JAVAC.



Features:

• Maximum sensitivity less than 4g/year
• L-M-H, three levels of sensitivity
• Self-test function starts when powering on
• Leakage peak recording function
• Battery indication
• Sensor fault alarm
• Designed for ergonomic comfort
• TFT LCD display
• UV-LED instantly lights up
• Auto shut down feature after 10 minutes of no operation
• Earphone function for noisy environments

Includes:

• Infrared sensor
• Rechargable lithium ion battery
• Spare filters
• AC wall charger
• Flexi-probe
• Ear buds
• Heavy duty carrying case

Specifications:

• Compatible refrigerants: R22, R32, R134a, R404a, R410a, R507, R600, R1234yf & all CFCs, HCFCs, HFCs and HFOs
• Minimum sensitivity: 1 g/a
• Sensitivity per EN14624: 1 g/a
• Power source: Lithium ion battery (rechargeable)
• Battery life: ~10 hours



#4. JAVAC 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

JAVA66336



This JAVAC JAVA66336, 2-Valve Refrigeration Manifold Set has evolved from over 50 years of industry knowledge. With a 36" hose set and large 80mm gauges, this manifold set is designed for consistently accurate professional use.



Features:

• High quality aluminium body
• Piston values
• Soft ergonomic with colour-coded knobs
• Heavy-duty swivel hanging hook
• Heavy-duty black carry case
• 80mm gauges with soft cushion-protective cover, pulse-free pointer, zero-pointed callibration and colour-coded

Specifications:

• 800 psi max recommended working pressure
• Burst pressure 4,000 psi
• Red, blue & yellow hoses: 72", 5/16" SAE connections
• Included: 2-Valve Refrigeration Manifold, 3-piece hose set, hanging manifold hook & carry case



#5. JAVAC Acravac Digital Vacuum Gauge

710202G21



The JAVAC 710202G21, Acravac Digital Vacuum Gauge is a gauge that displays the actual reading of the vacuum level throughout the entire evacuation process, from atmosphere, to 1 micron.



Features:

• Large, easy-to-read LCD display

• Quick calibration specific to local pressure

• Displays in micron, Pascals & millibar

• The only vac stat that uses a Pirani sensor in the HVAC&R industry

• Automatic shut-off after 60 minutes to save battery life

• Stores the last reading for easy retrieval upon start-up

Specifications:

• Package includes: Acravac digital gauge, a 9 V battery & filters, in a storage case

• Battery life of 45 hours

• Sensor type: Pirani

• Range: Atmosphere to 1 micron

• Display resolution: 1 micron increments, 1 Pa increments & 0.01 mbar increments

• Display: Micron, Pascals & mbar

• Accuracy: <2000 micron +/-5%, >2000 micron +/- 10%
