HVACDIRECT Entry Complete Service Kit (8 Piece Kit)

HVACDIRECT Entry Complete Service Kit (8 Piece Kit)

KIT14



This HVACDIRECT KIT14, Entry Complete Service Kit (8 Piece Kit) is a high quality tool kit that is ideal for HVAC requirements. Included in this kit are some of HVAC Direct's best selling products.

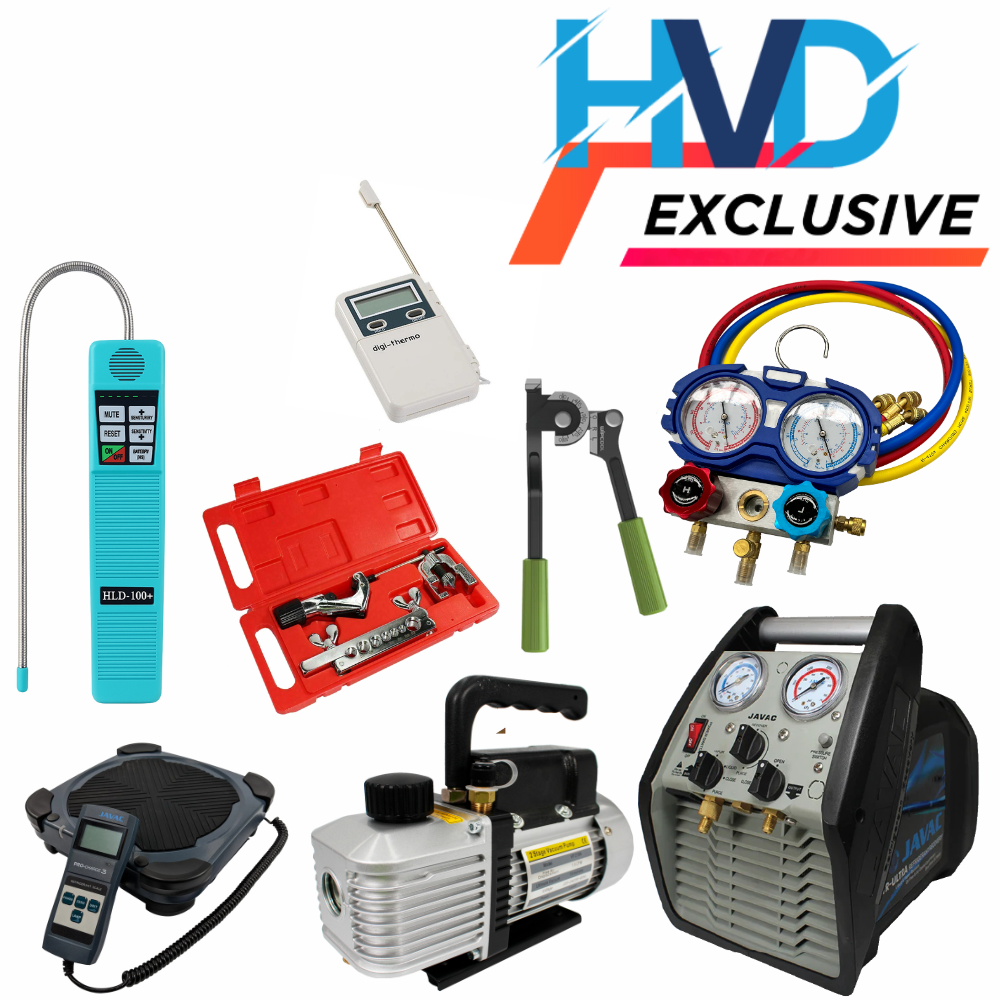

Kit contains:



#1. HVACDIRECT 45 L/min, 2-Stage Refrigeration Vacuum Pump

VP215N



This HVACDIRECT VP215N, Refrigeration Vacuum Pump is a quality 2 stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

• General refrigeration

• Bottle shops and convenient stores

• Restaurants, cafes and catering facilities

• Household or residential jobs including split systems

• Commercial work

Features/Benefits:

• Comes with a free starter bottle of oil

• Great value for money

• Anti-oil demister to prevent oil spillage

• Fitted with 1/4" SAE connection

• 45 L/min flow rate

• 15 micron ultimate vacuum

• 230ml oil capacity

• Dimensions (mm): 240x93x200

• Weight (kg): 4.3kg

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507



#2. JAVAC XTR ULTRA Recovery Machine - Non-Sparking - R32, R410, R134a Compliant

XTULT21



This JAVAC XTULT21, XTR ULTRA is a quality recovery machine, that provides reliability, accuracy, and an extremely durable design.



Features:

• Recovers: R12, R134a, R22, R32, R401, R404, R406, R408, R410A, R411, R412, R500, R502, R509, 1234yf, and most CFC’s, HCFC’s and HFC’s
• 3/4 hp oil free, brushless DC compressor
• Compact and lightweight design, weighs only 8.5 kg
• Integrated purge function without the need to change hoses
• Integrated multi pass condenser for faster recovery times
• High-speed fan provides exceptional cooling
• Three valve manifold for superior control of liquid and vapour recovery
• Weight balanced heavy duty case for easy handling
• 2 metre power cord

Specifications:

• Liquid recovery rate (kg/min): 2

• Vapour recovery rate (kg/min): 0.31

• Push/pull (kg/min): 7

• Connections: 1/4" SAE

• HP Cut Out: 550 psi

• Operating Temp: 0–45 °C

• Noise Level: 75 dba

• Weight: 8.5 kg

• Dimensions (mm): 320x220x260



#3. WIPCOOL ALD-2 HEATED DIODE REFRIGERANT LEAK DETECTOR

JAVALD2

Features:

• Flexible probe
• High precision and sensitivity sensor
• LCD Display

Specifications:

• Sensor type: Heated diode gas sensor
• Minimum detectable leakage: ≤3g/year
• Reaction time: ≤ 3 seconds
• Warm-up Time: 30 seconds
• Reset Time: ≤ 10 seconds
• Operating Temperature Range: 0-50 ℃
• Operating Humidity Range: <80% RH (non-condensing)
• Applicable Refrigerant: CFCs, HCFCs, HFCs. HCs and HFOs
• Sensor lifetime: ≥ 1 year
• Reset: Automatic/ Manual
• Probe Length: 420mm (16.5 in)
• Battery: 3 x AA alkaline battery, 7 hours continuous working

#4. JAVAC Pro-Charge 3 Refrigerant Charging Scale

C12626



This JAVAC C12626, Pro-Charge 3 Scales offer a 100kg weighing limit. The scale is highly accurate, extremely durable and easy to operate.



Features:

• Power on self test (only lasts 2 seconds)
• Tare deduction in full range (100kg)
• LCD display
• Carry bag included
• Auto turn off feature, after 10 minutes idle
• Overweight protection
• Back lit blue screen
• Non slip rubber base
• Bumper protection
• Controller storage compartment
• Battery level indicator

Specifications:

• Max weight: 100kgs
• Operating temperature: -10°C - 40°C
• Resolution: 5 g
• Unit can switch between kg, oz & lb



#5. HVACDIRECT 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

HMG2R32II



This HVACDIRECT HMG2R32II, Refrigeration Manifold & Hose Set is a high quality manifold set option that provides an ease of use as well as accurate results.



Features:

• Temperature in Celsius for R32, R410a

• Class 1.6 gauges - Ideal when purchasing a quality manifold

• Large 70 mm diameter easy-to-read dual gauges

• Manifold incorporates built-in sight glass

• High pressure or low pressure is selectable

• Piston valves for more positive seal and less wear

• Extra large easy to read colour-coded dials

• Full rubber gauge housing for added protection

• Durable metal casing

• Aluminium alloy testing manifold body

• High impact pop-in lexan lens

• A heavy duty hook for hanging the gauges

• No-flutter gauge design

• 1/4" SAE brass connections

• 5/16" SAE adaptors to allow switching between different systems

Specifications:

• 3 x 0.9 m 1/4" SAE charging hoses: Red, yellow & blue

• Working pressure: 800 psi

• Burst pressure: 4000 psi

• Designed to meet 1/4" SAE refrigerant permutation requirement



#6. WIPCOOL Tube Bender

JAVHB3

This WIPCOOL JAVHB3, Tube Bender is a quality tool used to bend and shape tubing across industries such as; HVAC, refrigeration, automotive, hydraulic and pneumatic systems maintenance.

Specifications:

• Provides flawless bending results

• Ergonomic handle grips


• High quality die-cast aluminium for long life

• Sizes: 1/4", 5/16" & 3/8" (O.D.)



#7. HVACDIRECT Refrigeration Flaring Tool Kit (With Tube Cutter)

LT1226A



This HVACDIRECT LT1226A, Refrigeration Flaring Tool Kit is a quality, versatile, 3-piece kit used for aluminium and copper piping, brake and fuel lines, and cooling and transmission lines.



Detail:

• Sizes:  3/16", 1/4", 5/16", 3/8", 7/16", 1/2" and 5/8"

• Used for: soft pliable metals such as copper and aluminium

• Flaring tools provide a water-tight fitting and come with industry-standard measurements on the tool

• They are rated highly upon their ability to form tight fittings

• Set in: Handy PVC carry storage case



#8. HVACDIRECT Digital Thermometer

WT2THERMO



This HVACDIRECT WT2THERMO, HVACDIRECT Digital Thermometer is a high quality, portable thermometer. With it's 900mm flexible lead, readings can be taken using it from outside of vehicles.



Details:

• Temperature: -50 °C to +300 °C

• Resolution: 0.1 °C

• Accuracy: ±1 °C

• Power: DC 1.5 V AAA alkaline battery

• Probe length: 100 mm (+ handle)

• Screen size (mm): 32 x 14

• Plus: Min/max and alarm functions
