HVACDIRECT Entry HVAC Kit (Pump, Recovery Unit & Leak Detector)

HVACDIRECT Entry HVAC Kit (Pump, Recovery Unit & Leak Detector)

KIT8

This HVACDIRECT KIT8, Entry HVAC Kit (Pump, Recovery Unit & Leak Detector) is a high quality tool kit that is ideal for basic HVAC requirements. Included in this kit are some of HVAC Direct's best selling products.

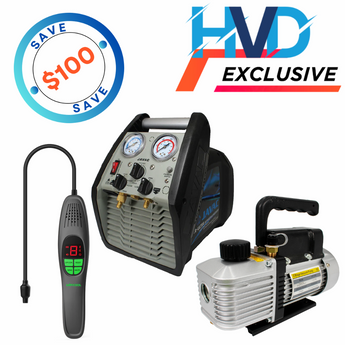

Kit contains:

#1. HVACDIRECT 70 L/min, 2-Stage Refrigeration Vacuum Pump

VP230N

This HVACDIRECT VP230N, Refrigeration Vacuum Pump is a quality 2 stage, oil rotary vane pump with a 70 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.

Applications:

• General refrigeration

• Bottle shops and convenient stores

• Restaurants, cafes and catering facilities

• Household or residential jobs including split systems

• Commercial work

Features/Benefits:

• Comes with a free starter bottle of oil

• Great value for money

• Anti-oil demister to prevent oil spillage

• Fitted with 1/4" & 3/8" SAE connections

• 70 L/min flow rate

• 15 micron ultimate vacuum

• 300ml oil capacity

• Dimensions (mm): 280x115x230

• Weight (kg): 7.8kg

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507

#2. JAVAC XTR ULTRA Recovery Machine - Non-Sparking - R32, R410, R134a Compliant

XTULT21

This JAVAC XTULT21, XTR ULTRA is a quality recovery machine, that provides reliability, accuracy, and an extremely durable design.

Features:

• Recovers: R12, R134a, R22, R32, R401, R404, R406, R408, R410A, R411, R412, R500, R502, R509, 1234yf, and most CFC’s, HCFC’s and HFC’s
• 3/4 hp oil free, brushless DC compressor
• Compact and lightweight design, weighs only 8.5 kg
• Integrated purge function without the need to change hoses
• Integrated multi pass condenser for faster recovery times
• High-speed fan provides exceptional cooling
• Three valve manifold for superior control of liquid and vapour recovery
• Weight balanced heavy duty case for easy handling
• 2 metre power cord

Specifications:

• Liquid recovery rate (kg/min): 2

• Vapour recovery rate (kg/min): 0.31

• Push/pull (kg/min): 7

• Connections: 1/4" SAE

• HP Cut Out: 550 psi

• Operating Temp: 0–45 °C

• Noise Level: 75 dba

• Weight: 8.5 kg

• Dimensions (mm): 320x220x260

#3. WIPCOOL ALD-2 HEATED DIODE REFRIGERANT LEAK DETECTOR

JAVALD2

Features:

• Flexible probe
• High precision and sensitivity sensor
• LCD Display

Specifications:

• Sensor type: Heated diode gas sensor
• Minimum detectable leakage: ≤3g/year
• Reaction time: ≤ 3 seconds
• Warm-up Time: 30 seconds
• Reset Time: ≤ 10 seconds
• Operating Temperature Range: 0-50 ℃
• Operating Humidity Range: <80% RH (non-condensing)
• Applicable Refrigerant: CFCs, HCFCs, HFCs. HCs and HFOs
• Sensor lifetime: ≥ 1 year
• Reset: Automatic/ Manual
• Probe Length: 420mm (16.5 in)
• Battery: 3 x AA alkaline battery, 7 hours continuous working
