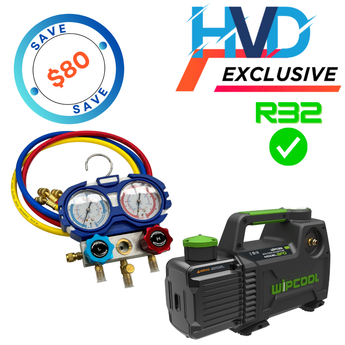

HVACDIRECT R32-KIT1 45L/min Refrigeration & HVAC Split System Install Kit (Pump & Manifold Set)

HVACDIRECT New Refrigeration & HVAC Split System Install Kit (Pump & Manifold Set)

R32-KIT1

This HVACDIRECT R32-KIT1 kit, New Refrigeration & HVAC Split System Install Kit (Pump & Manifold Set) is a high quality tool kit that is ideal for general refrigeration and split system service. Included in this kit are some of HVAC Direct's best selling products.

Kit contains:

#1. WIPCOOL 240V Series, 45 L/min, 2-stage Vacuum Pump - R32 Compliant

JAV2F0R

This WIPCOOL 240V Series JAV2F0R is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.

Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil
• R32 and 1234yf compliant
• Manufactured to WIPCOOL's high quality standards
• 45 L/min flow rate
• 15 micron ultimate vacuum
• Built-in vacuum gauge
• Automatic solenoid valve

• Anti-oil demister to prevent oil spillage
• Fitted with a 1/4" SAE connection (+3/8" SAE adapter)
• 300ml oil capacity
• Dimensions (mm): 309x113x198
• Weight (kg): 4.2kg

#2. HVACDIRECT 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

HMG2R32II

This HVACDIRECT HMG2R32II, Refrigeration Manifold & Hose Set is a high quality manifold set option that provides an ease of use as well as accurate results.

Features:

• Temperature in Celsius for R32, R410a

• Class 1.6 gauges - Ideal when purchasing a quality manifold

• Large 70 mm diameter easy-to-read dual gauges

• Manifold incorporates built-in sight glass

• High pressure or low pressure is selectable

• Piston valves for more positive seal and less wear

• Extra large easy to read colour-coded dials

• Full rubber gauge housing for added protection

• Durable metal casing

• Aluminium alloy testing manifold body

• High impact pop-in lexan lens

• A heavy duty hook for hanging the gauges

• No-flutter gauge design

• 1/4" SAE brass connections

• 5/16" SAE adaptors to allow switching between different systems

Specifications:

• 3 x 0.9 m 1/4" SAE charging hoses: Red, yellow & blue

• Working pressure: 800 psi

• Burst pressure: 4000 psi

• Designed to meet 1/4" SAE refrigerant permutation requirement
