TESTO
Testo 558s Digital Manifold Kit - Hoses
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
SKU: 05645583
The testo 558s offers an intuitive app feel in the manifold, with touchscreen and clear measurement graphs on a large colour display. In addition to the touchscreen, the manifold can also be operated via keys when working with gloves. Thanks to its A3 and A2L compatibility, high robustness with IP54 and hybrid charging system comprising rechargeable and non-rechargeable batteries, the manifold is ideal for every situation.
Intuitive operation
The touchscreen operation and large colour display make configuration, control and documentation much easier. This makes operation of the manifold faster and more intuitive. When working with gloves, the manifold can be operated using keys in addition to the touchscreen.
Always up to date
Thanks to free updates (OTA), the manifold can be regularly updated. This allows, for example, new refrigerants to be added and connectivity to new products to be enabled.
Data logging
Readings can be recorded for up to 30 minutes and displayed as trend curves. This allows anomalies to be quickly identified. Optionally, the manifold can be extended to a logging capacity of 72 hours.
Ready for any refrigerant
For maximum safety, the manifold is also compatible with Class A3 and A2L flammable refrigerants. With a wide selection of 96+ refrigerants, all common refrigerants are stored in the manifold. Frequently used refrigerants can be marked as favourites for quick retrieval.

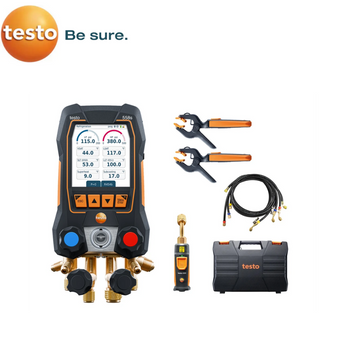

Delivery inclusions
- testo 558s digital 4-way manifold
- 2 x testo 115i wireless clamp thermometers
- 1 x testo 552i wireless vacuum probe
- 3 x hose charging set with valve 1/4" - 1/4" SAE (7/16" - 7/16" UNF)
- 1 x Vacuum hose 3/8" SAE (5/8" UNF)
- Transport case
- USB-C cable
- testo Smart App (free download)
- Calibration protocol
- Instruction manual
Technical data
Temperature
| Measuring range |
-58.0° to 302.0 °F / -50 to +150 °C
|
|---|---|
| Accuracy |
±0.9 °F / ±0.5 °C
|
| Resolution |
0.1 °F / 0.1 °C
|
| Probe connection |
2 x Plug-in (NTC)
|
Pressure measurement
| Measuring range |
-14.7 to 870 psi / -1 to 60 bar / -1 to 60 bar
|
|---|---|
| Accuracy |
±0.25 % Fs
|
| Resolution |
0.1 psi / 0.01 bar / 0.01 bar
|
| Probe connection |
3 x 7/16" – UNF + 1 x 5/8'' – UNF
|
| Overload rel. (low pressure) |
940 psi / 65 bar / 65 bar
|
| Overload rel. (high pressure) |
940 psi / 65 bar / 65 bar
|
General technical data
| Weight |
2.7 Ibs
|
|---|---|
| Dimensions |
9 x 4.4 x 3 in. / 229 x 112.5 x 71 mm
|
| Operating temperature |
-4.0° to 122.0 °F / -20 to +50 °C
|
| Protection class |
IP54
|
| Auto-off instrument |
10 min
|
| Battery life |
≤ 70 h with backlighting and Bluetooth®
|
| Battery type |
Built-in rechargeable battery: LI batttery 18650; 3x AA; Replaceable battery: 3 alkaline batteries AA
|
| Display type |
capacitive touch display
|
| Interface |
Bluetooth 5.0 ®
|
| Radio range |
492.12 ft. / 150 m
|
| Storage temperature |
-4.0° to 140.0 °F / -20 to +60 °C
|
Kit Contents
1. TESTO 552i Wireless Vacuum Probe
05642552
This TESTO 05642552, TESTO 552i Wireless Vacuum Probe is a quality app-controlled vacuum probe with Bluetooth connectivity. The vacuum probe delivers reliable measurement results and is robust and easy to use. It provides optimum support for proper evacuation of refrigeration and air conditioning systems and heat pumps.
2. Testo 115i - Clamp Thermometer Operated Via Smartphone
0560211502
Combined with a smartphone or tablet, the testo 115i clamp thermometer is the ideal temperature-measuring instrument for servicing and troubleshooting air conditioning and refrigeration systems and installing them. It can also be used to measure flow and return temperatures.
- Measurement of the flow and return temperature of heating systems.
- Measurement of temperatures in refrigeration systems to calculate superheating and subcooling.
- Easy to use at measuring points that are far apart.
- Rapid detection of temperature changes via graphical progress display.
Professional measuring technology is now mobile: when it comes to temperature measurements at widely spaced measuring points, the testo 115i makes things much easier – thanks to a wireless connection to the smartphone or tablet. Individual refrigeration system parameters can also be calculated when used in conjunction with the testo 549i pressure measuring instrument.
3. Testo 3-hose charging set with valve 1/4" - 1/4" SAE
05542115
The 3-hose charging set with valve is compatible with all common refrigerants and has integrated shut-off valves for precise flow control. The high-quality construction guarantees stability and durability, even in demanding conditions. Dimensions: 1/4" - 1/4" SAE, length 1.5 m.
4. Testo Vacuum hose 3/8" SAE
05542117
The vacuum hoses are compatible with all common refrigerants and offer a high level of safety thanks to their robust construction. Made of high-quality materials, they meet SAE J2196 standards and minimize refrigerant loss.
Robust construction and pressure resistance: Working pressure of 55 bar / 800 psi, burst pressure of 276 bar / 4000 psi for safe performance
