FIELDPIECE 280 L/min Refrigeration Vacuum Pump

FIELDPIECE 280 L/min Refrigeration Vacuum Pump

VPX7

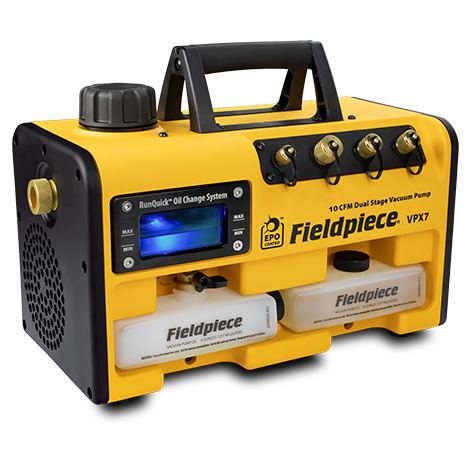

This FIELDPIECE VPX7, Refrigeration Vacuum Pump (280 L/min) allows you to clearly view your pump oil through the huge oil reservoir window to see its condition. And when it's time for an oil change, it's way quicker with the RunQuick™ Oil Change System. Plus the extra wide base helps stability, preventing tipping and spilling.

Features:

• 10 cfm (283 L/m) with Variable Speed DC motor

• 15 micron ultimate vacuum

• Backlit oil reservoir to view condition of oil and system

• Includes 2 x 237 mL oil-filled RunQuick™ Oil Cartridges

• Water resistant to withstand direct rain

• Suitable for A2L class refrigerants: R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

• Four in-line ports provide tidy hose routing for three different size hoses: 1/4", 3/8" and 1/2"

• Helpful hint: Place the power cord on the handle for tangle-free storage and easy lifting

Specifications:

• Flow rate: 10 cfm (283 L/m)

• Oil capacity: 237 mL

• Oil backlight: Blue LED

• Oil drain: Ball valve

• Port sizes: 1/4”, 3/8”, 1/2”

• Compressor: Rotary vane, two stage

• Motor: 3/4 HP Brushless DC

• Rpm: 2500

• Power source: 240 VAC @ 50 Hz 1 phase

• Nominal current draw: 6.0 AAC

• Ultimate vacuum at input ports: 15 micron

• Dimensions (mm): 201 x 296 x 406

• Weight: 10.9 kg

• Operating environment: -1.1 to 50 °C
