FIELDPIECE 2-Way Thermometer—Infrared & Probe
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours

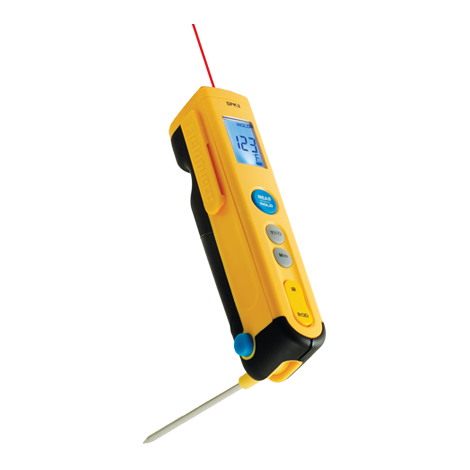

FIELDPIECE 2-Way Thermometer—Infrared & Probe
SPK3
Providing convenient 2-way temperatures from the folding ROD thermometer with 8:1 Infrared Temperature measurements, the Fieldpiece SPK3 is a great tool to quickly take in-duct, ambient, and register temperatures. It’s a handy tool to assess a system and it fits conveniently in your pocket. The ROD has a sharp, narrow tip to easily insert into duct work, and the hanging hooks allows you to take hands-free measurements.
The bright backlight display flips between the IR and ROD measurements so readings are always easy to view. Plus this handy tool quickly calculates T1–T2 across both the IR and ROD modes, or a combination of the two.
Details:
-
Great to quickly assess a system
-
Folding ROD for in duct measurements
-
8:1 IR for diffusers, registers and ambient temps
-
Hands free in-duct measurements
-
Quickly calculates T1–T2 across both ROD and IR
Specifications:
-
Probe length: 94 mm
-
Operating environment: 0 to 40 °C (<90% RH)
-
Storage environment: -10 to 60 °C (<70% RH)
- Battery: 2 x AAA (installed)
-
Battery life (alkaline): 40 h (IR), 750 h (ROD)
-
Auto-off: 3 min, 15 min (T1-T2 mode)
-
IR range: -30 to 500 °C
-
Best resolution: 0.2 °C:
-
Accuracy: @22.8 °C, <80 %RH, calibrated @ 300 mm
±2 °C, -2 to 0 °C,
±1.5 °C, 0 to 10 °C,
±1 °C, 10 to 40 °C,
±1.5 °C or 1.5% of rdg -
Field of view (D:S): 8:1
- Response time: 0.5 s
-
Wavelength: 8 µm to 14 µm
-
Emissivity: E=0.95
-
Rod range: -40 to 125 °C
- Best resolution: 0.1 °C
-
Accuracy: @22.8 °C, <80 %RH
±0.5 °C, 0 to 50 °C
±1.0 °C, 0 to 50 °C
-
Response time: 20 s
- Dimensions (mm): 300 x 150 x 150
- Weight: 500 g
