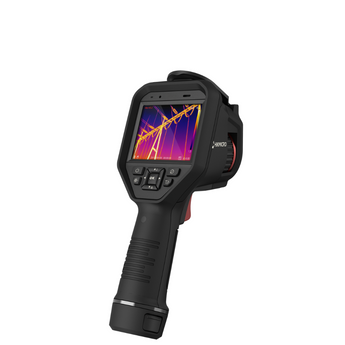

HIKMICRO - M31 Handheld Thermography Camera

JAVM30

HIKMICRO M31 Handheld Thermography Camera is an enhanced version of its predecessor, the M30. The M31 Thermal Camera features a 384 × 288 Thermal resolution and a high sensitivity response of <30mk, providing a clear contrast image for fault detection. This professional tool aids in the quick identification of high-temperature targets in any environment due to quick response of the 50hz screen, aiding in decision-making and enhancing safety measures. Widely used in industries such as Building, HVAC, and auto industry for various applications.

Key Feature
● High sensitivity thermal module with 384 × 288 resolution
● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
● Supports multiple palettes
● High quality optical module with 8 MP resolution
● Bi-spectrum image fusion, picture-in-picture preview
● Wide temperature measurement range: -20°C to 650°C
● High temperature measurement accuracy: Up to ± 2°C, ± 2%
● 640 × 480 resolution 3.5'' LCD touch display
● Long-distance laser light supplement for thermography targets
● LED light supplement makes the device a torch in required scenarios
● Supports 1.0x to 8.0x continuous digital zoom

Specification

• Infrared Image

• IR Resolution 384 × 288 (110, 592 pixels)

• SuperIR 768 × 576 (442,368 pixels)

• NETD < 30 mK (@ 25°C, F# = 1.0)

• Image Frequency 50 Hz

• Detector Pitch 17 μm

• Spectral Range 7.5 μm to 14 μm

• Focal Length 6.4 mm

• F-number F1.0

• Field of View (FOV) 41.1° (H) × 30.5° (V)

• Spatial Resolution (IFOV) 1.87 mrad

• Min. Focus Distance 0.1 m (0.32 ft)

• Focus Mode Manual Focus

Image Display

• Visual Camera : 3264 × 2448 (8 MP)

• Display : 640 × 480 Resolution, 3.5" LCD Touch Screen

• Screen Brightness : Manual

• Digital Zoom : 1.0x to 8.0x continuous

• Color Palettes : White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

• Focus Mode Palette : Above/Below/Interval

• Color Alarm : Above/Below/Interval/Insulation
• Image Modes : Thermal/Visual/Fusion/PIP/Blending

Measurement and Analysis

• Object Temperature Range -20°C to 650°C (-4°F to 1202°F)

• Accuracy Max. (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

• Measurement Tools Center Spot, Hot Spot, Cold Spot

• User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles

• Level and Span Mode Auto/Manual/1-Tap Touch-screen


Data Storage and Communication

• Storage Media Removable 64 GB Micro SD Card

• Image Storage Capacity Approx. 100,000 Images

• Annotations Voice note: max. 60 seconds;

• Text note: max. 200 characters

• Video Storage Capacity Approx. 300 hours

• Video File Format MP4 video and radiometric video


General

• Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)

• Bluetooth Bluetooth 4.2

• USB Interface USB Type-C

• LED Light Yes

• Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

• Battery Type Interchangeable and rechargeable Li-ion battery

• Battery Operating Time Approx. 4 hours

• Battery Charging Time Approx. 4 hours fully charged

• Protection Level IP54

• Drop Test Height 2 m (6.56 ft)

• Safety IEC 61010-1

• EMC EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

• Vibration 1 g, IEC 60068-2-6

• Shock 15 g, IEC 60068-2-27

• Working Temperature Range -20°C to 50°C (-4°F to 122°F)

• Storage Temperature Range -40°C to 70°C (-40°F to 158°F)

• Relative Humidity < 95% non-condensing

• Weight Approx. 720 g (1.59 lb)

• Dimension 244 mm × 100 mm × 104 mm (9.6" × 3.9" × 4.1")
• Tripod Mounting UNC ¼”-20

Dimension

• Unit: mm [inch]244mm (9.6'') 100mm (3.94'') 104mm (4.1'')


Optional Accessories

• E097-13-1S1P26650 - Battery
• HM-5202ZC - Charger
• HM-SP01-POUCH
• HM-2925ZJ-TM01- BRACKET
